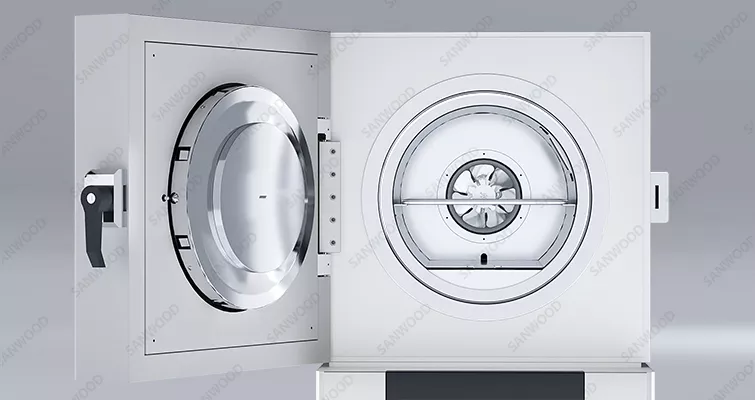

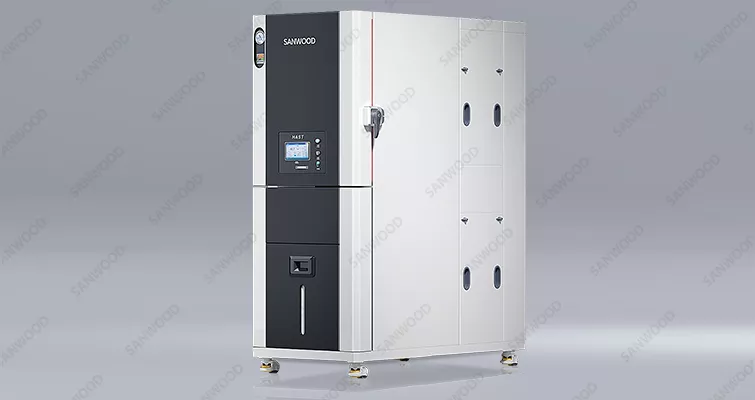

Highly Accelerated Stress Test System (HAST Chamber)

Q1: Why has the semiconductor industry transition from traditional THB testing to HAST chamber validation for packaging qualification?

A: Traditional Temperature Humidity Bias (THB) testing is a massive operational bottleneck, demanding 1000 hours of continuous system run time to evaluate component moisture resistance boundaries. Sanwood's specialized environmental test chamber platform eliminates this operational latency by elevating the testing space pressure up to 4 atmospheres, raising temperatures to 142°C. This extreme thermodynamic configuration forces water vapor molecules to penetrate non-hermetic packaging plastics exponentially faster. HAST delivers identical defect precipitation—such as galvanic corrosion and wire-bond delamination—within a highly compressed 96-to-168-hour window, accelerating product qualification cycles by over 80%.

Q2: How does this HAST chamber strictly prevent catastrophic dew condensation on active test boards under highly unstable pressure conditions?

A:  If steam hits saturation or localized cold spots exist inside a climatic test chamber, water droplets will instantly form on biased board traces, triggering fatal short circuits that destroy expensive DUT lots. Our architecture completely blocks this hazard by separating dry-bulb heating grids entirely from wet-bulb vapor generation loops. Mated to predictive feed-forward digital control algorithms, the system holds the environment strictly within precise unsaturated bands (typically 85% RH) at all times. By ensuring that the localized air dew point never drifts above the active test card surface temperature throughout ramp-up and cool-down cycles, it shuts down condensation risks entirely.

Q3: What engineering safeguards ensure that the multi-channel pass-through links preserve high signal integrity without pressure leaks at 142°C and 4 atmospheres?

A: Running continuous biased testing inside an environmental test chamber at 4 atmospheres presents severe hermeticity and impedance challenges, as gas will naturally find microscopic micro-gaps along signal lines, leading to voltage leakage and pulse distortion. Sanwood overcomes this containment bottleneck by deploying custom instrumentation pass-through flanks manufactured from specialized high-Tg polyimide base layer boards fully impregnated with military-grade vacuum ceramic-epoxy compounds. Every individual trace channel is cross-shielded to suppress dynamic crosstalk, while structural metal O-rings dead-lock the physical joint interface, guaranteeing pure, undistorted bias pattern delivery across thousands of high-pressure validation hours.

Q4: How does the system handle pressure vessel emergency safety compliance when a sudden facility power dropout occurs during a live stress test run?

A: A sudden power failure mid-test inside a high-capacity climatic test chamber can lead to dangerous thermal energy imbalances if high-pressure steam remains trapped in the core vessel, presenting facility safety hazards. To enforce absolute operational security, Sanwood integrates an autonomous, normally-closed pneumatic dump valve sub-system backed by independent backup battery grids. The microsecond a primary power failure or utility dropout is logged, the smart safe-fail loops automatically trigger a controlled, slow-metered depressurization exhaust program. This ensures the internal chamber safely returns to standard ambient atmospheric pressure and safe door-unlock status smoothly without generating thermal shock damage to internal silicon wafers.
