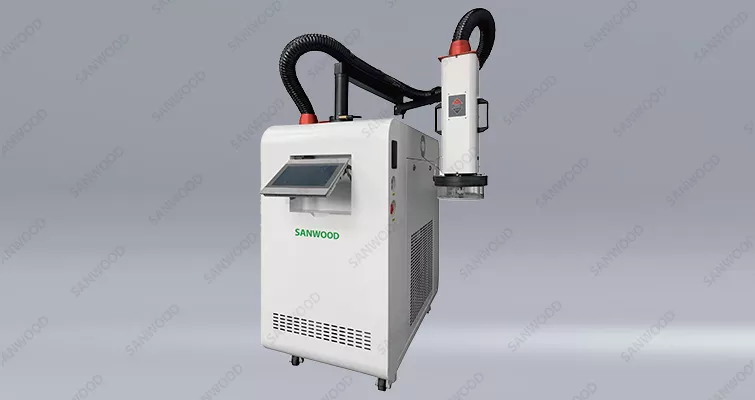

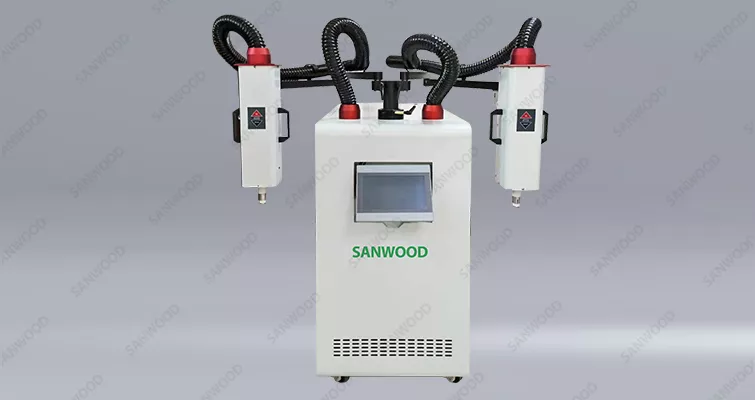

Thermal Cycling Test System

Q1: How do Sanwood thermal cycling test systems achieve linear ramp rates that approach localized temperature forcing dynamics?

A: Achieving near-forcing velocity across an entire enclosure requires defying the thermal inertia of both the air volume and heavy metal product fixtures. Instead of utilizing static refrigeration output found in a conventional climatic test chamber, Sanwood integrates an advanced compressor-overdrive module coupled with dual electronic expansion valves (EEVs) and a fluid-dynamic hot-gas bypass loop. The system continuously monitors the delta between the core product temperature and the air stream in real-time, instantly modulating variable refrigeration displacement to maintain strict linear accuracy from 30°C/min up to 60°C/min under maximum thermal mass loads.

Q2: How does the chamber prevent evaporator icing during continuous high-velocity cycling down to cryogenic thresholds?

A: Executing continuous, extreme-rate thermal sweeps down to cryogenic limits normally causes rapid ambient moisture crystallization on internal cooling coils, which chokes airflow fluid dynamics and degrades ramp linearity. To preserve baseline airspeed without resorting to slow, passive chamber defrosting cycles, our platform integrates a specialized, non-interrupted dry air purge envelope. By maintaining an internal dew point below -70°C, the system locks moisture out of the thermodynamic loop completely, ensuring uncompromised heat exchange efficiency over thousands of continuous, extreme cycles.

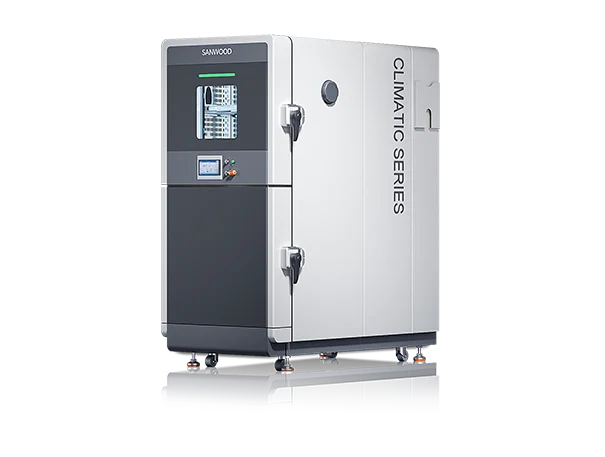

Q3: What engineering criteria dictates choosing an extreme-rate thermal cycling chamber over a traditional air-to-air thermal shock chamber?

A:  The decision depends entirely on the specific failure mechanisms you intend to isolate. Traditional air-to-air thermal shock chambers rely on sub-second damper transitions to induce immediate brittle fracturing via severe thermal strain. Conversely, the high-rate Sanwood thermal cycling test system operates within a single-enclosure closed loop to manage precise, linear stress trajectories. This approach targets cumulative plastic deformation and solder joint creep fatigue over extended profiles. Furthermore, it allows for seamless integration with external power electronics to perform active power-load cycling during maximum ramp velocity, exposing transient threshold drifts that static conditioning in an ordinary environmental test chamber cannot trigger.

Q4: How does the system prevent data logging lag and aliasing errors during ultra-fast 60°C/min temperature transitions?

A: Traditional climatic test chamber controllers sample environmental data every few seconds, which causes severe data aliasing and synchronization lag when temperatures change at 1°C per second. To guarantee absolute data integrity for high-throughput computing hardware validation, Sanwood deploys a dedicated, high-speed controller backplane featuring a 100ms high-frequency scanning cycle. Coupled with advanced digital filtering and synchronized external product sensor inputs, the instrumentation logs transient thermal profiles smoothly. This high-resolution dataset provides R&D engineers with precise, uncorrupted timing metrics required to correlate intermittent firmware failures directly with specific thermodynamic stress points.
