Q1: How does a specialized AI server ESS walk-in chamber manage extreme thermal overshoots when a full-rack GPU deployment shifts into peak processing modes?

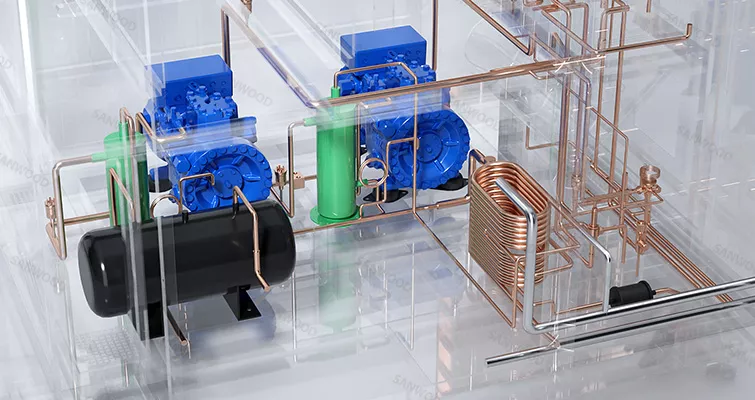

A: Fully populated AI server racks generate immense, high-dynamic heat spikes that act as an aggressive internal heating element inside the enclosure. When thousands of processor cores trigger high-throughput logic vectors simultaneously, traditional PID thermal loops lag behind, causing massive temperature overshoot and collapsing the cooling ramp rate. Sanwood's specialized environmental test chamber platform defeats this lag by incorporating a proprietary feed-forward power-balancing algorithm linked directly to the sub-rack power monitoring networks. The microsecond a multi-kilowatt electrical power surge is logged from the server rack, the system bypasses slow air-temperature sensors, instantly micro-modulating electronic expansion valves to inject pre-calculated excess refrigeration capacity into the laminar airflow loop, neutralizing up to 60 kW of dynamic heat right at the chassis exhaust before the chamber climate can drift.

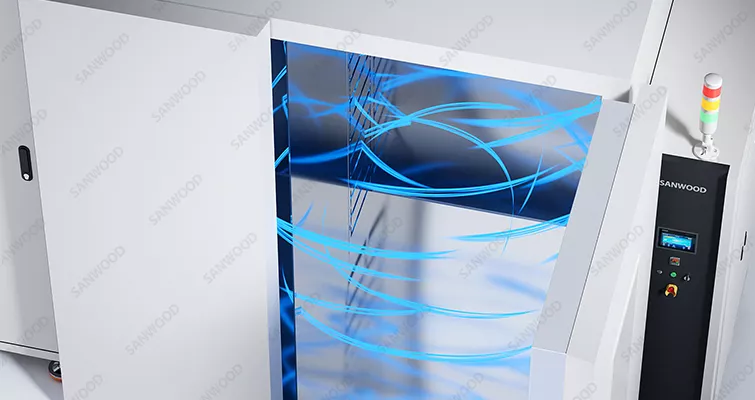

Q2: Why does uniform Environmental Stress Screening (ESS) on an 8U AI server chassis require a specialized laminar cross-flow wind-wall instead of standard vertical airflow loops?
A: Air naturally seeks the path of least resistance. When a massive 8U AI server or dense automotive domain controller fixture is rolled into a standard room, its internal high-density component arrays create extreme physical wind resistance. Standard vertical or top-down airflow loops hit the top of the chassis and instantly short-circuit, bypassing around the sides of the rack. This leaves the core logic boards and inner high-power components trapped in stagnant, zero-velocity "thermal pockets," leading to severe stress under-exposure and screening Escapes. Sanwood's high-rate climatic test chamber platform eliminates this bypass effect by deploying a fully custom engineered lateral cross-flow positive-pressure blower wind-wall. This layout forces high-static pressure, high-velocity air streams horizontally and evenly across every multi-layer card slot layer, forcing the laminar airflow straight through the internal heat sinks to ensure synchronized, repeatable thermomechanical stress tracking on every single component.
Q3: How does the dynamic control loop block fatal condensation on high-voltage server power busbars when returning from a deep-freeze ESS run back to ambient ground conditions?
A: The danger of condensation is extreme during the heating phase of an ESS profile. After cold soaking down to -40°C, the heavy copper backplanes and power busbars inside an active AI rack maintain a massive thermal lag, remaining frozen while the surrounding chamber air is rapidly heated. If the local dew point temperature of the circulating air rises above the actual surface temperature of the server board, moisture instantly condenses and frosts across the high-voltage traces, causing catastrophic short circuits and destroying high-value hardware. Our environmental test chamber platform completely eliminates this risk by incorporating an automated, pre-emptive dry air/nitrogen purge loop linked to real-time surface temperature thermocouples on the DUT arrays. Before the system triggers its rapid heating sequence, the controller injects large volumes of desiccated dry air to suppress internal relative humidity below 3%, keeping the air dew point tightly locked far below the hardware's lagging thermal profile throughout the entire transition.

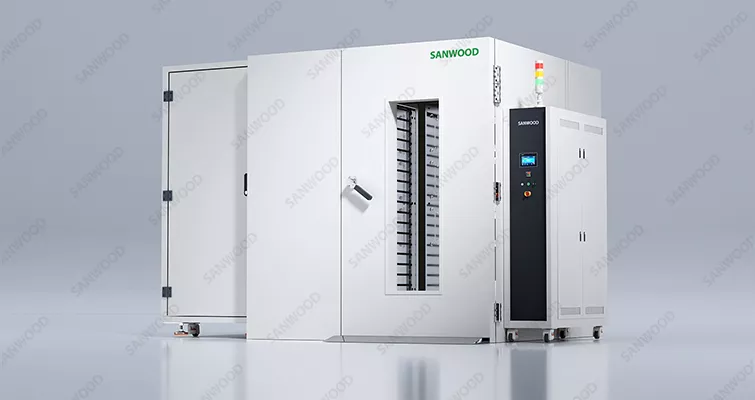

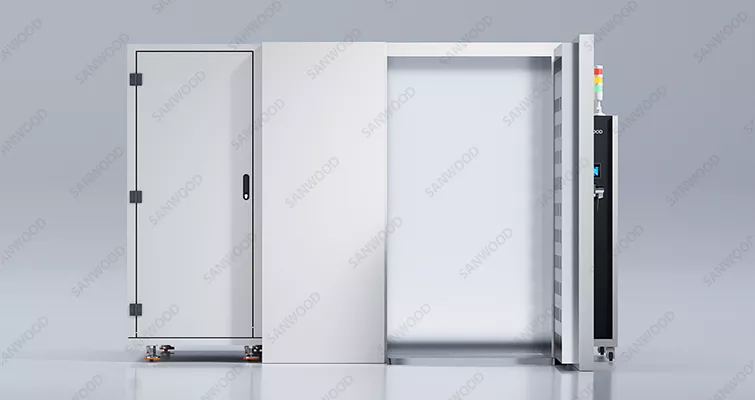

Q4: For automotive and aerospace computing validation, how does this walk-in climatic test chamber handle the intense thermomechanical strain of non-stop 15°C/min transitions without structural metal fatigue?
A: Rapidly shifting temperatures across a huge walk-in volume generates immense mechanical strain due to the non-linear thermal expansion of stainless steel. If the internal liner is rigidly welded to the external carbon steel framework, the structural mismatch will snap welds, buckle panels, and tear the door seal perimeter within months. Our high-rate climatic test chamber resolves this by deploying a fully floating interior design. The inner 304 stainless steel liner panels are connected using specialized overlapping mechanical slip-joints and heavy-duty silicone compression thermal breaks. This allows the internal box to physically expand, contract, and breathe independently from the outer structural chassis during 15°C/min transitions. Combined with multi-point adjustable compression latches and continuous dual-path hollow-core silicone gaskets along the door edge, the system maintains complete airtightness and zero structural fatigue failure across decades of rigorous testing cycles.
